Understanding Your FD50: A Beginner's Guide to Recording Settings

Introduction: Your Discreet Recording Companion

Welcome to the FD50. At its core, this device is a powerful voice recorder cleverly designed to look and function like a simple USB flash drive, operating without any lights or sounds to ensure completely discreet performance. The purpose of this guide is to demystify the main settings—recording modes, audio quality, and sensitivity—so you can confidently choose the right options for your needs from day one.

--------------------------------------------------------------------------------

1. Your First Big Choice: How to Record

The FD50 offers two primary ways to capture audio, each suited for different situations. You can select your mode using the simple rotating switch on the device.

1.1. Continuous Recording Mode (●): Capturing Everything

To enter this mode, rotate the switch toward the ● icon. Continuous Recording does exactly what its name implies: it records all sound from the moment you turn it on until you turn it off.

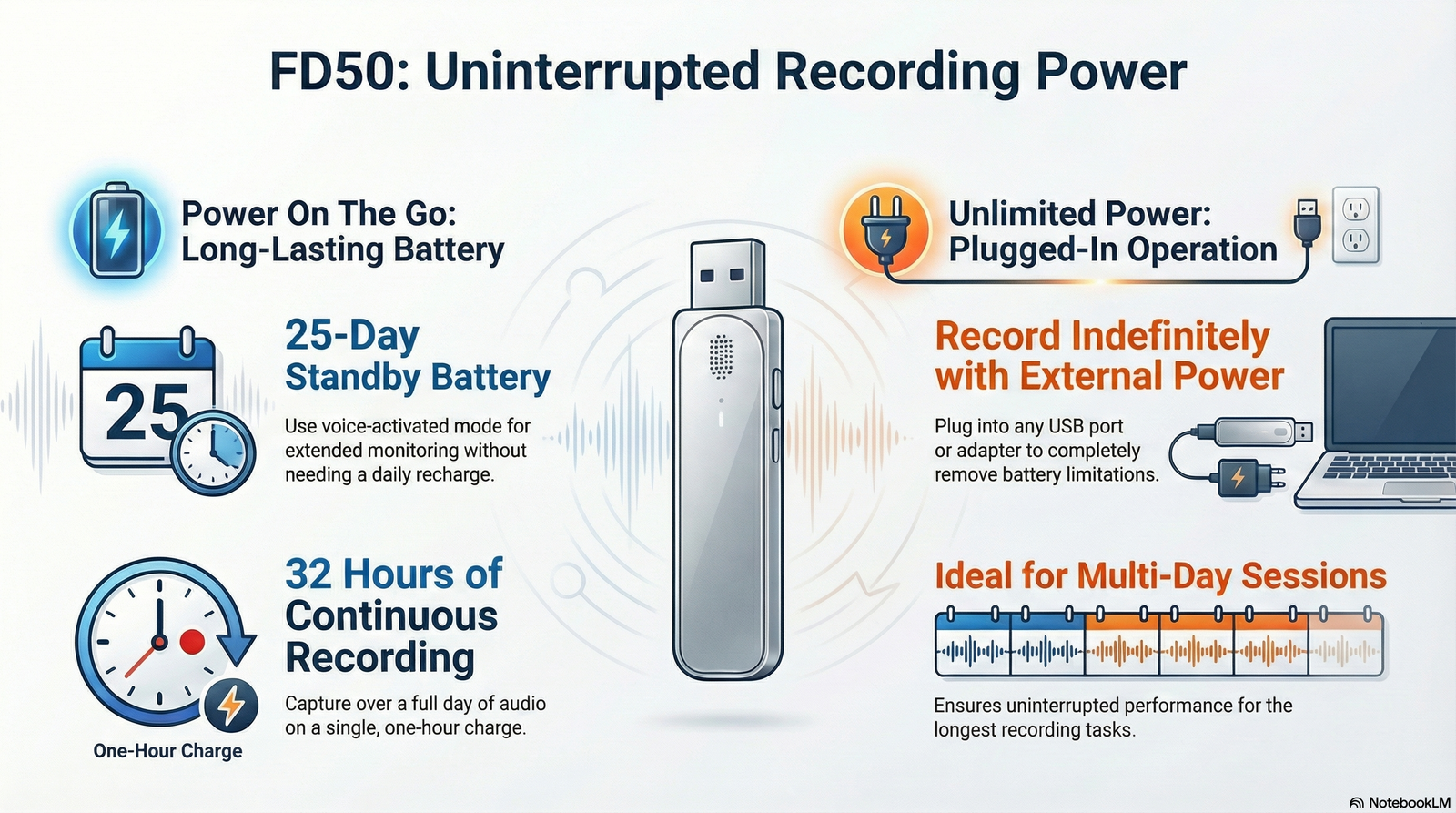

• On a full battery, it can record for up to 32 hours straight.

• To keep files manageable, it automatically splits long recordings into separate 5-hour files.

This mode is perfect for situations where you cannot afford to miss anything, such as an important meeting, a full lecture, or an event, as it captures every sound from start to finish.

1.2. Voice-Activated Mode (●●): Recording Only the Action

To use this mode, rotate the switch toward the ●● icon. Also known as SVOS (Sound-Activated Recording), this setting puts the device into a smart standby state. It only begins recording when it detects sound and automatically pauses after one minute of silence, waiting for the next sound to occur.

This mode has two major benefits:

1. It dramatically extends the battery life to a 25-day standby period.

2. It saves memory by skipping long silent periods, ensuring you only capture the important moments.

1.3. At a Glance: Continuous vs. Voice-Activated

Use this table to help decide which mode is best for you.

Now that you've chosen how you want to record, let's decide on the quality of your audio.

--------------------------------------------------------------------------------

2. Balancing Clarity and Space: Audio Quality Settings

The FD50 allows you to choose your audio quality, letting you strike the perfect balance between sound clarity and file size. These settings are configured using the "Time Setup" program, which is stored on the device itself. Please note that this configuration program is for Windows computers only.

Once you've set your audio quality, you can fine-tune what the recorder listens for in Voice-Activated mode.

--------------------------------------------------------------------------------

3. Fine-Tuning Your Ears: Voice Activation Sensitivity

If you have chosen Voice-Activated (SVOS) mode, you can adjust how sensitive the microphone is. This powerful feature allows you to adapt the recorder to a specific environment, ensuring it records conversations without being triggered by minor background noise like an air conditioner. This setting is also configured via the "Time Setup" program on a Windows PC.

Here are the five sensitivity levels, explained in practical terms:

• +2 (Very Sensitive)

• Activates on sounds around ~52 dBA. Ideal for very quiet environments where you need to capture soft sounds or distant whispers.

• +1 (Sensitive)

• Activates on sounds around ~55 dBA. A good general setting for quiet rooms or recording conversations at a moderate distance.

• 0 (Normal - Default)

• Activates on sounds around ~58 dBA. The default, balanced setting suitable for typical office or home environments with average background noise.

• -1 (Less Sensitive)

• Activates on sounds around ~61 dBA. Useful for slightly noisy areas where you want to avoid capturing background chatter and focus on closer sounds.

• -2 (Least Sensitive)

• Activates on sounds around ~64 dBA. Best for loud environments, like a busy cafe, to ensure the recorder only activates for loud, nearby speech.

With an understanding of these three core settings, let's see how they work together in the real world.

--------------------------------------------------------------------------------

4. Putting It All Together: Common Scenarios

Here are some practical examples of how to combine the FD50's settings for optimal results.

Scenario 1: Recording a 3-Hour University Lecture

• Recommended Mode: Continuous Recording (●)

• Why: This ensures no part of the lecture is missed if the speaker pauses for long periods or speaks quietly, which might not trigger voice activation.

• Recommended Quality: XHQ

• Why: The recording is only a few hours long, so storage space is not a concern. Prioritizing audio clarity will make the lecture much easier to listen to and transcribe later.

Scenario 2: Monitoring a Quiet Office While You're Away for a Week

• Recommended Mode: Voice-Activated (●●)

• Why: The device's 25-day standby capability is essential for conserving battery over multiple days, making this the only viable option for long-term monitoring.

• Recommended Quality: HQ

• Why: This maximizes the massive 2,304-hour storage capacity, ensuring you have more than enough room for any audio captured over the week.

• Recommended Sensitivity: +2 (Very Sensitive)

• Why: A higher sensitivity is needed to reliably pick up any potential sounds, like soft footsteps or quiet speech, in an otherwise silent room.

Scenario 3: Documenting a Conversation in a Moderately Busy Restaurant

• Recommended Mode: Continuous Recording (●)

• Why: In a setting with constant background noise, Voice-Activated mode might cut in and out frequently. Continuous mode is more reliable for capturing a consistent back-and-forth conversation.

• Recommended Quality: XHQ

• Why: The higher 128 kbps bitrate captures more audio detail, making it easier to isolate voices from ambient noise during playback.

• Alternative (if using SVOS): If you must use voice activation, set the sensitivity to -1 or -2. This will help prevent background chatter and clatter from triggering the recording, focusing only on the louder, nearby conversation.

5. Final Takeaway

The power of the FD50 comes from its simple yet effective settings. We encourage you to experiment with these three core settings. Mastering the interplay between Mode, Quality, and Sensitivity will allow you to unlock the full potential of your FD50 and adapt it to virtually any recording situation.
